BS Coatings The beam-splitting film is a kind of thin film material with special optical properties, which can separate or combine the incident light according to different wavelengths. The design and manufacture..
Product description

The beam-splitting film is a kind of thin film material with special optical properties, which can separate or combine the incident light according to different wavelengths. The design and manufacture of the beam-splitting film aim to achieve the functions of light splitting and wavelength selection. In the manufacturing process of beam splitters and dichroic mirrors (internal components of optical instruments), the beam-splitting film is plated to realize the screening and reflection of different wavelength bands. It is widely used in many fields such as spectral analysis, optical instruments, optoelectronics, the solar energy field, display technology, and optical coatings.



Substrate Material
Wavelength
Reflectivity Requirement
Reflectivity Requirement
pigtail
1064/1310/1550 ± 20nm
T/R = 50%/50% ± 2%
T/R = 80%/20% ± 2%
G/C-lens
1064/1310/1550 ± 20nm
T/R = 50%/50% ± 2%
T/R = 80%/20% ± 2%
H-K9L
1064/1310/1550 ± 20nm
T/R = 50%/50% ± 2%
T/R = 80%/20% ± 2%
Fused Quartz
1064/1310/1550 ± 20nm
T/R = 50%/50% ± 2%
T/R = 80%/20% ± 2%



Coating Type Performance and Application
Beam-splitting Film Layer Polarizing Beam Splitter High reflection for s-polarized and antireflection for p-polarized for laser application.
Broadband Polarizing Beam Splitter Wide wavelength bandwidth provide high reflection to s-polarized and antireflection to p-polarized.
Non-polarizing Beam Splitter The low polarization dependence of the metallic dielectric hybrid coating allows the transmission and reflection of S-polarization and P-polarization states to be within 6% of each other.

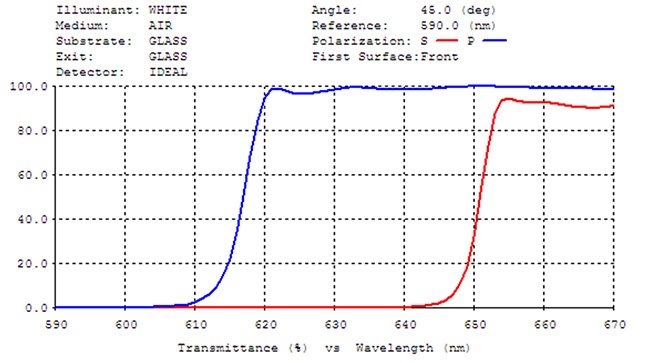

Laser Line Polarization Beamsplitter Coating

PBS 632.8nm Rs>99.5% & Rp<5% @632.8nm AOI=45Deg

Broadband Polarization Beamsplitter Coating


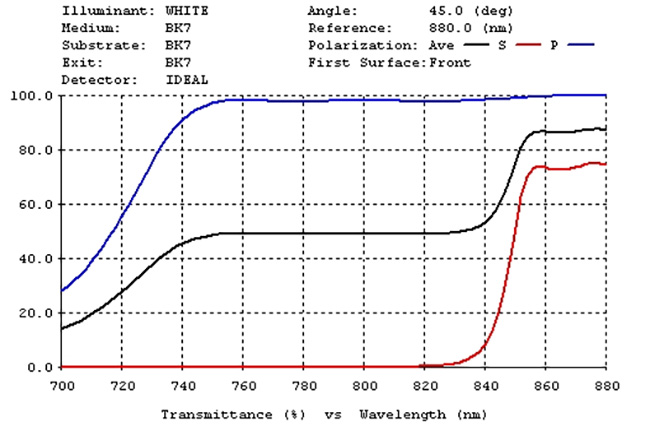

Rs>99.5% & Rp = 2±1% @ 770nm~800nm AOI=45Deg

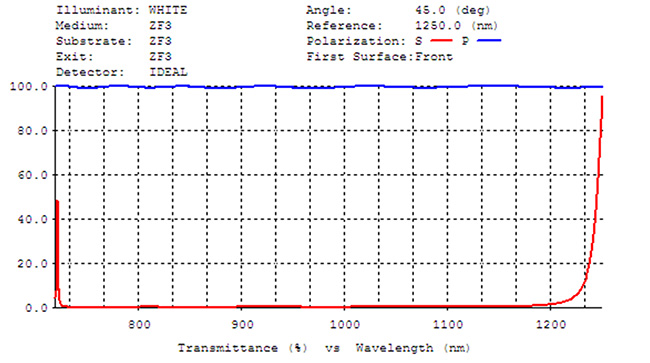

Rs>99% & Rp<5% @ 800nm~1100nm AOI=45Deg

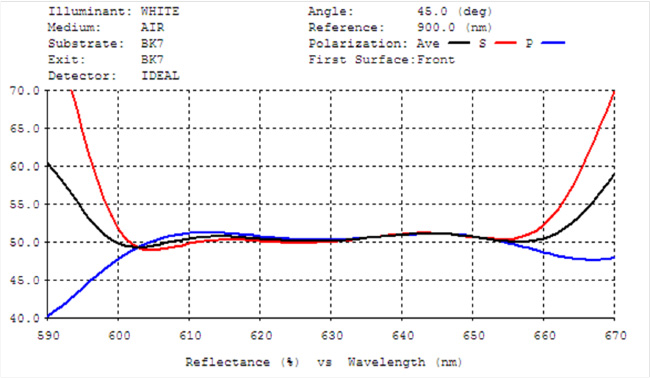

Non-polarizing beamspiltter Coating



Rs:Ts = Rp:Tp = 50:50 @ 632.8nm AOI=45Deg



Tp = Ts = Rp = Rs = 45%, |Tp - Ts|<6%, |Rp - Rs|<6%,
Absorbtion<10%@430nm~670nm

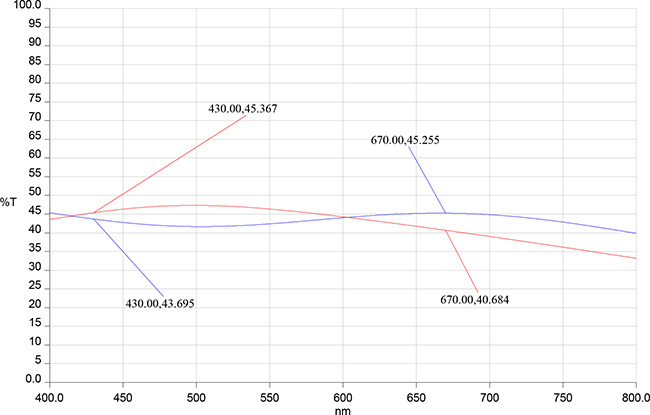

Red Line - Tp, Blue Line - Ts
