Product description

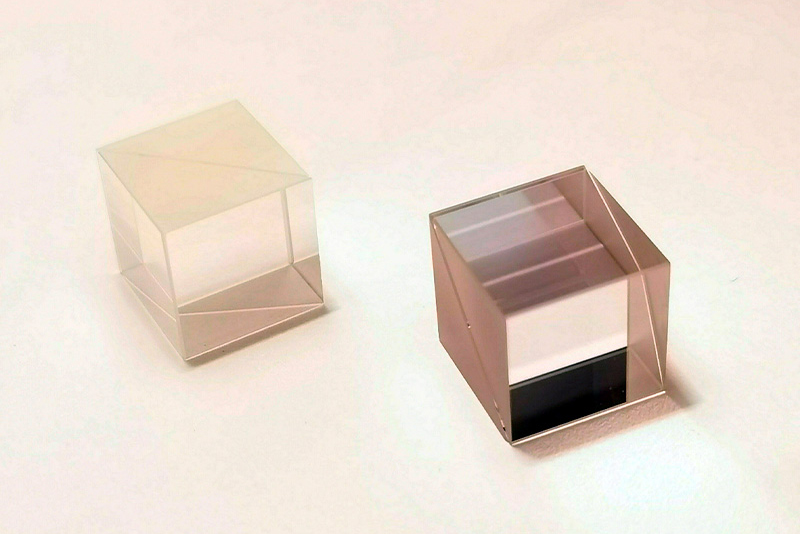

We can provide single-wavelength or broadband polarization beam splitting prisms. These PBSs are made of glass materials and achieve the polarization effect through dielectric beam splitting films.

After unpolarized light passes through the PBS, the light emerging along the propagation direction is pure P-polarized light, and the S-polarized light is reflected from the side. The transmitted P-polarized light has a good extinction ratio. Depending on the coating, the extinction ratio can range from 300:1 to 10000:1.
Note: Specific wavelength bands and extinction ratios can be customized according to customer requirements.

Characteristics

  • Vertical incidence, facilitating optical path adjustment
  • Good degree of polarization
  • Low price
  • The operating band can be either single-wavelength or broadband
  • Compact structure

Processing Indicators

Standard Specifications
Single-wavelength PBS
Broadband PBS
Operating Band
355, 532, 633, 808, 880, 1064, 1310, 1550
450-650nm, 650-950nm
900-1200nm, 1200-1600nm
Extinction Ratio
>500:1, >1000:1, >10000:1
>500:1, >1000:1, >10000:1
Surface Finish
60/40, 40/20
Beam Deviation
< 3 arc minutes
Wavefront Distortion
<λ/4@633nm
Transmittance
Tp>95%, Ts<0.1%
Coating
The bevel is coated with a polarization beam splitting film, and the end face is coated with an anti-reflection film
Mount
Standard products have no mount. Square or round mounts can be optionally installed

Standard Products of Single-wavelength PBSs:

Model
Operating Wavelength
Extinction Ratio
Material
Dimensions (mm)
PBS1010
355, 532, 633, 808, 880, 1064, 1310, 1550
>500:1
>1000:1
>10000:1
K9
JGS1
10.0*10.0*10.0
PBS1012
12.7*12.7*12.7
PBS1015
15.0*15.0*15.0
PBS1020
20.0*20.0*20.0
PBS1025
25.4*25.4*25.4

Standard Products of Broadband PBSs:

Model
Operating Wavelength
Extinction Ratio
Material
Dimensions (mm)
PBS2010
450-650nm,
650-950nm
900-1200nm,
1200-1600nm
>500:1
>1000:1
>10000:1
ZF Material
10.0*10.0*10.0
PBS2012
12.7*12.7*12.7
PBS2015
15.0*15.0*15.0
PBS2020
20.0*20.0*20.0
PBS2025
25.4*25.4*25.4
