Optical Prism
Optical Elements
Right-angle prism
We can provide right-angle prisms within the range of 3-100mm. Conventional materials include N-BK7, UV fused silica, CaF₂, SF materials, etc. And anti-reflection coatings or reflective coatings can ..
Product description
We can provide right-angle prisms within the range of 3-100mm. Conventional materials include N-BK7, UV fused silica, CaF₂, SF materials, etc. And anti-reflection coatings or reflective coatings can be applied according to customer requirements.
Material Selection: BK7 material is suitable for the visible to near-infrared band, with a relatively low price and stable performance.
Fused silica material is suitable for the deep ultraviolet to near-infrared band, with a low coefficient of thermal expansion, and can be used in ultraviolet or high-power application scenarios.
CaF₂ material is suitable for the deep ultraviolet to mid-infrared band, and has good transmittance in the range of 0.13μm~10μm.
Fused silica material is suitable for the deep ultraviolet to near-infrared band, with a low coefficient of thermal expansion, and can be used in ultraviolet or high-power application scenarios.
CaF₂ material is suitable for the deep ultraviolet to mid-infrared band, and has good transmittance in the range of 0.13μm~10μm.

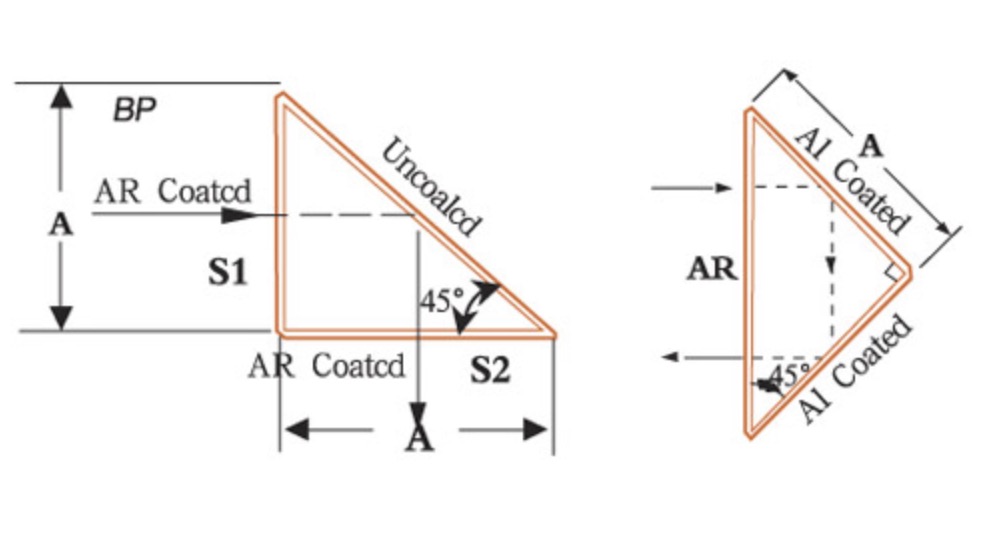

The right-angle prism can be used as a 90° reflector or a 180° reflector, as shown in the following optical path diagram:
Processing Indicators
| Standard Specifications |
BK7 Right-angle Prism
|
Fused Silica Right-angle Prism
|
|
Operating Band
|
350-2000nm
|
185-2100nm
|
|
Size Tolerance
|
+0.0, -0.1mm
|
|
|
Angle Tolerance
|
3 arc min(Standard) / 10 arc sec(High Precision)
|
|
|
Effective Aperture
|
>85%
|
|
|
Surface Finish
|
60/40（Standard）/ 20/10（High Precision）
|
|
|
Surface Shape
|
λ/ 4(Standard) / λ/10（High Precision）per 25mm@633nm
|
|
|
Chamfer
|
<0.25mm*45°
|
|
|
Coating
|
Customized according to customer requirements
|
|
Standard Products of BK7 Right-angle Prisms:
|
Model
|
A
|
B
|
C
|
|
RAP104
|
10.0
|
10.0
|
10.0
|
|
RAP105
|
12.7
|
12.7
|
12.7
|
|
RAP108
|
20.0
|
20.0
|
20.0
|
|
RAP110
|
25.4
|
25.4
|
25.4
|
Standard Products of UV Fused Silica Right-angle Prisms:
|
Model
|
A
|
B
|
C
|
|
RAP204
|
10.0
|
10.0
|
10.0
|
|
RAP205
|
12.7
|
12.7
|
12.7
|
|
RAP208
|
20.0
|
20.0
|
20.0
|
|
RAP210
|
25.4
|
25.4
|
25.4
|
