Conventional Wavelength Optical Circulator
In a three-port circulator, the optical signal input from Port 1 is only output from Port 2, the optical signal input from Port 2 is only output from Port 3, and the optical signal input from Port 3 is only output from Port 1. This product is widely used in fields such as fiber lasers, optical add-drop multiplexing, bidirectional pumping systems, dispersion compensation devices, fiber optic sensing, and scientific research. Zhongce Optoelectronics looks forward to cooperating with you.
Features
- High isolation & High Reture Loss
- Low insertion loss & PDL
- Optical Path Epoxy Free
Application
- EDFA,DWDM and OTDR
- DWDM and OADM networks
- Bi-directional transmission system
Specifications
|
Type
Parameter
|
3 Port
|
4 Port
|
|||||
|
Configuration
|
Port 1 to Port 2;Port 2 to Port 3
|
Port 1 to Port 2;Port 2 to Port 3;Port 3 to Port 4
|
|||||
|
Operating wavelength (nm)
|
1310, 1480,1550, 1580 (+/-30)
|
C+L
(1520~1620) |
1310, 1480,1550,1580,
(+/-30) |
C+L
(1520~1620) |
|||
|
Typ. Peak Isolation
|
50
|
50
|
50
|
50
|
|||
|
Isolation (λc,23℃ all SOP) (dB)
|
≥40
|
≥40
|
≥40
|
≥40
|
|||
|
Isolation (Over all λ, T, SOP) (dB)
|
≥35
|
≥30
|
≥35
|
≥30
|
|||
|
Insertion Loss (λc,0~70℃ all SOP) (dB)
|
Grade P
|
≤0.8
|
≤1.1
|
≤1.0
|
≤1.2
|
||
|
Grade A
|
≤1.0
|
≤1.2
|
≤1.2
|
≤1.3
|
|||
|
PDL (dB)
|
≤0.15
|
≤0.20
|
|||||
|
Return loss (dB)
|
≥50
|
||||||
|
PMD (ps)
|
≤0.1
|
||||||
|
Directivity
|
≥50
|
||||||
|
Power handling (mW)
|
≤300
|
||||||
|
Fiber Type
|
SMF-28e
|
||||||
|
Operating temperature (℃)
|
0 ~ +70
|
||||||
|
Storage temperature (℃)
|
-40 ~ +85
|
||||||
|
Package Dimensions (mm)
|
For bare fiber or 900um loose tube
|
φ5.5×L50(P2)
|
φ5.5×L68(P5)
|
φ5.5×L64(P8)
|
|||
|
For 3mm or 2mm cable
|
L90XW20XH9.5(P9)
|
||||||
* Insertion loss is not include connector loss

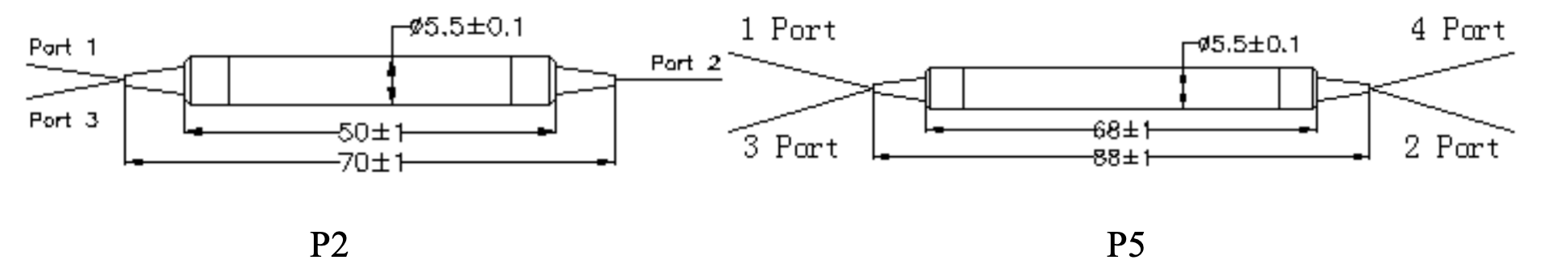

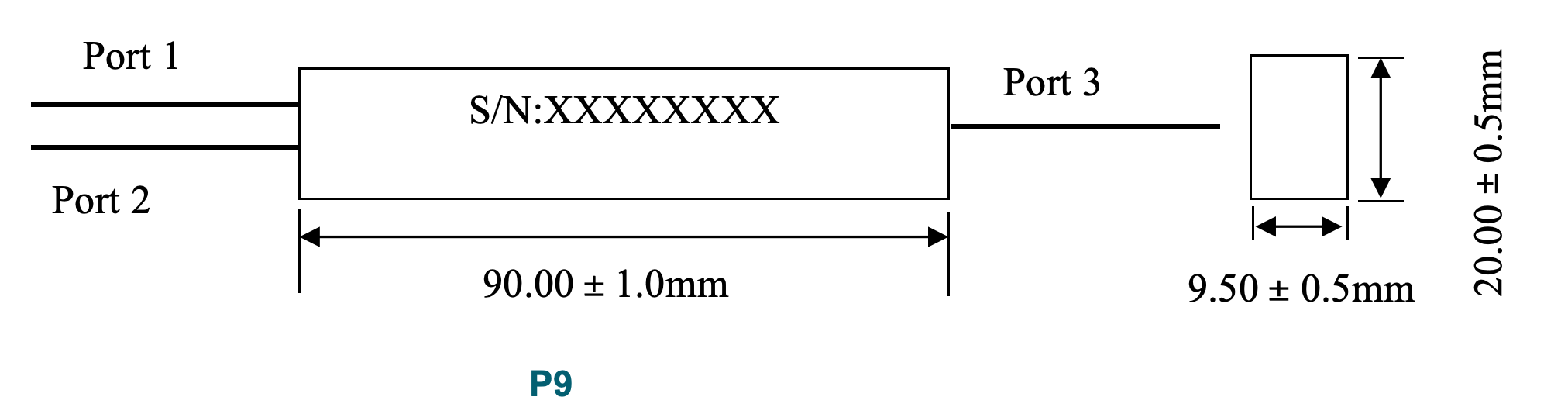

Package Dimension
Ordering Information
|
CIR |
wavelength |
Type |
Grade |
0 |
Package type |
Pigtail Type |
Length |
Connector |
|
|
CIR |
1310=1310nm |
3=3Port |
P=P Grade |
|
2=P2(for 3 ports) |
1=250um bare fiber |
H=0.5m |
0=None |
|
|
1480=1480nm |
4=4Port |
A= A Grade |
5=P5(for 4 ports) |
2=900um loose tube |
8=0.8m |
1=FC/UPC |
|||
|
1550=1550nm |
|
|
8＝P8 (for 4 ports) |
3=3mm loose tube |
1=1.0m |
2=FC/APC |
|||
|
1580=1580nm |
|
|
9=P9(for 3mm or 2mm cable) |
4=2mm loose tube |
5=1.5m |
3=SC/APC |
|||
|
1570=1520~1620nm |
|
|
|
|
2=2.0m |
4=SC/UPC |
|||
|
|
|
|
|
|
A=1.1m |
5=MU |
|||
|
|
|
|
|
|
B=1.2m |
6=LC/PC |
|||
|
|
|
|
|
|
C=0.2m |
7=LC/APC |
|||
|
|
|
|
|
|
D=0.3m |
8=E2000 APC |
|||
|
|
|
|
|
|
L=0.4m |
9=E2000 PC |
|||
|
|
|
|
|
|
3=3m |
A=ST/PC |
|||
|
|
|
|
|
|
|
B=SC/UPC for port1&3, SC/APC for port2 |
|||
|
|
|
|
|
|
|
C=LC/UPC for port1&3, SC/UPC for port2 D=SC/APC for port2,LC/UPC for port1&3 E= FC/APC for port1&3, LC/APC for port2 |
|||
